The Complete Caravan Electrical Setup Guide for Australian Tourers

Why Caravan Electrical Setup Matters More Than Most People Think

The caravan industry in Australia is booming, and more Australians are hitting the road for long-haul trips than ever before. But the number one issue that strands caravans at camps and causes headaches on the road isn't mechanical — it's electrical. Flat batteries, blown fuses, corroded connectors, and overloaded circuits are the most common problems on the road, and almost all of them are preventable with a properly planned electrical setup from the start.

This guide covers the key components of a caravan electrical system, how they connect to your tow vehicle, and what to look for when setting yours up.

The 7-Pin Flat Connector — Your Vehicle to Caravan Link

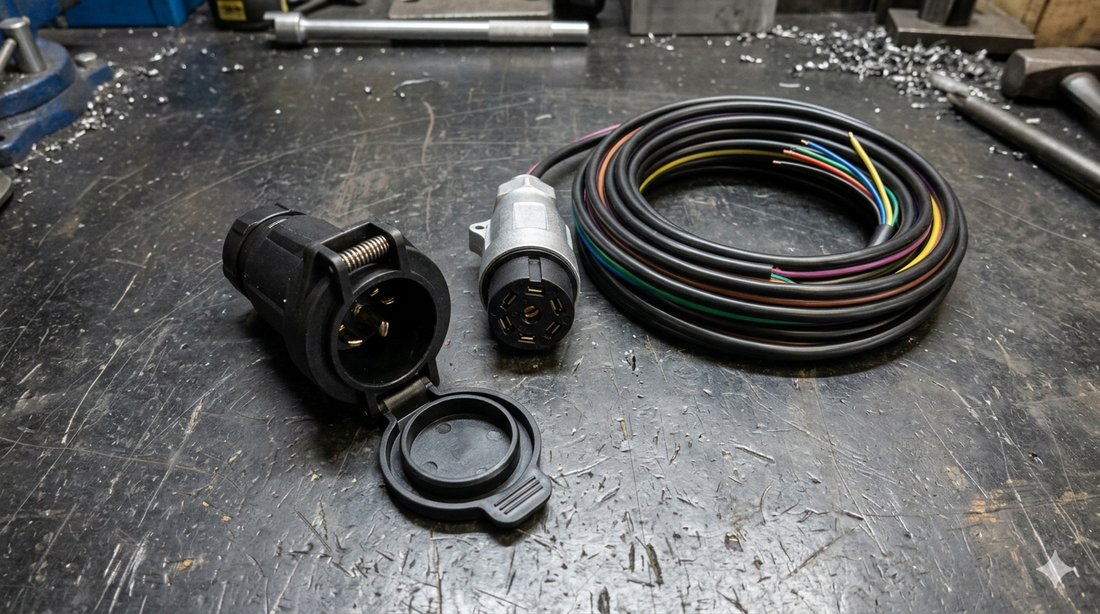

The 7-pin flat trailer connector is the Australian standard for connecting a caravan to a tow vehicle. It carries the circuits for brake lights, indicators, reversing lights, park lights, and electric brakes — the seven functions your tow vehicle needs to communicate to your caravan.

Aluminium housing connectors are the preferred choice for Australian conditions — they handle vibration, moisture, and UV exposure far better than plastic-bodied alternatives. Every connection in the 7-pin flat circuit should be properly crimped and sealed, not twisted and taped. Road vibration will work a twisted connection loose within months.

The Anderson Plug — Your Power Link

The 7-pin flat connector handles signalling circuits. It does not carry meaningful charging current. To charge your caravan's battery from your tow vehicle's alternator, you need a separate high-current connection — and in Australia, that means a 50A Anderson plug.

Most tow vehicles have a 50A Anderson socket fitted to the rear, and most caravans have a matching plug on the A-frame. When you connect up, the Anderson circuit carries up to 50 amps of charging current to the caravan battery while you drive.

On newer vehicles with smart alternators — most 4WDs built after 2015 — you'll need a DC-DC charger in the circuit to ensure the caravan battery gets a proper charge. A simple Anderson cable from the tow vehicle to the caravan won't charge efficiently on a modern vehicle without one.

Caravan Battery and 12V Power System

Most caravans run a 12V system powered by one or more deep-cycle batteries. The battery bank powers:

• LED lighting throughout the van
• 12V fridge or compressor fridge
• Water pump
• Fans and ventilation
• USB charging points
• 12V accessories like electric awnings and jacks

Every circuit off the battery needs its own fuse. A distribution fuse box — or even a simple set of inline blade fuse holders — protects each circuit individually. A single fuse on the battery positive is not sufficient protection for a multi-circuit caravan system.

Solar Input

Solar panels are standard on most touring caravans now. A rooftop panel connected through an MPPT solar charge controller charges the battery bank while stationary — essential for off-grid camping where you're not driving every day to top up via the Anderson lead.

The solar cable from the roof runs to the MPPT controller, which then connects to the battery. Between the controller and the battery, a fuse on the positive cable protects the wiring. Waterproof butt connectors and heat shrink tubing on all joins in the solar cable circuit prevent moisture ingress where the cable penetrates the roof.

LED Lighting and Marker Lights

LED side marker and clearance lights are a legal requirement on caravans over a certain length in Australia. They draw minimal current — typically under 0.5A each — but need to be properly fused and wired into the 7-pin flat circuit via the park light circuit.

When replacing or adding marker lights, match the existing wiring colour codes and use waterproof connectors throughout. Road grime, rain, and vibration will find any weakness in an unprotected join.

Common Wiring Mistakes to Avoid

• Undersized Anderson cable — use 6AWG (13mm²) minimum for a 50A Anderson circuit
• No fuse on the Anderson positive cable — fuse as close to the source battery as possible
• Twisted and taped joins — use waterproof heat shrink butt connectors on every join
• Single fuse for multiple circuits — each circuit needs individual protection
• Standard PVC tape in engine bays or hot areas — use high-temperature rubber tape or heat shrink instead
