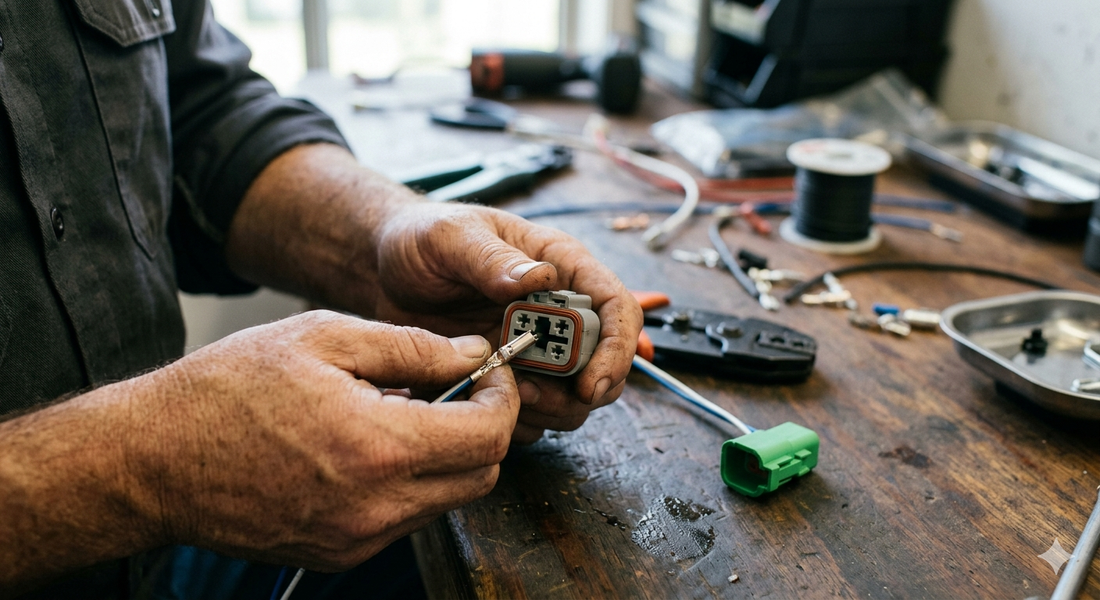

Deutsch DT Connectors in Workshop Builds: When and Why

Why the Connector Choice Matters in Professional Builds

Standard automotive connectors — spade terminals, bullet connectors, unprotected multi-pin housings — are designed for factory conditions on the production line. They're adequate for interior wiring that lives in a dry, stable environment, but they're not the right choice for under-bonnet, exposed, agricultural, marine, or heavy equipment wiring.

When a workshop or auto electrician specifies Deutsch DT-style connectors on a build, they're specifying the connector used in factory wiring harnesses on agricultural machinery, mining equipment, motorsport vehicles, and commercial trucks for a reason: they don't fail in harsh conditions.

What Makes a DT Connector Different

Three features separate DT-style connectors from standard automotive connectors:

1. IP67 sealing
The DT connector achieves IP67 — dust tight and waterproof to one metre for thirty minutes — through a combination of individual wire seals around each contact, a face seal on the mating surfaces, and a rear plug sealing the unused positions. This is not marketing language. IP67 is a measurable, testable standard. A DT connector used in a high-pressure wash environment, a creek crossing, or an irrigation application will not corrode or allow moisture ingress.

2. Wedgelock retention
Standard connectors retain contacts by friction or a simple locking tab. DT connectors use a wedgelock — a secondary retention device that inserts across all contacts after crimping, locking each one individually in the housing. The result is that a contact cannot back out of the housing under vibration or cable tension. In applications with significant vibration — agricultural equipment, off-road vehicles, machinery — this matters.

3. Size 16 contacts
The Size 16 contact used in DT connectors is a precision closed-barrel contact requiring a specific four-indent ratchet crimp tool. The crimp is consistent and gas-tight. Compared to open-barrel contacts crimped with a generic tool, the result is a more reliable electrical connection that doesn't develop resistance over time.

When to Specify DT Connectors

DT connectors are appropriate whenever a connection will be exposed to:

• Water — pressure washing, rain, immersion, marine environments
• Dust — agricultural, mining, construction environments
• Vibration — off-road vehicles, machinery, heavy equipment
• Temperature extremes — under-bonnet or near heat sources
• The need for disconnectability — sensors, actuators, lighting arrays that need to be serviced or replaced

Common workshop applications:

• Driving light and light bar wiring on 4WD vehicles
• Winch controller connections
• Sensor connections on agricultural and construction equipment
• Marine and boat trailer wiring
• Custom wiring harnesses for motorsport
• Any multi-conductor connection in an exposed engine bay position

DT Connector Configurations

DT-style connectors are available in 2, 3, 4, 6, 8, and 12-pin configurations. Each configuration is available as a plug (socket contacts, male housing) and receptacle (pin contacts, female housing) pair. The wedgelock is specific to the number of pins.

For most workshop accessory wiring:

• 2-pin — switched loads, simple actuators
• 3-pin — sensors (power, ground, signal)
• 4-pin — dual-circuit accessories, H-bridge motor controls
• 6-pin — multi-function lighting, complex sensor assemblies

Crimping DT Contacts Correctly

The Size 16 closed-barrel contact requires a ratchet crimp tool with a four-indent die specifically designed for this contact size. The tool must be rated for closed-barrel contacts — an open-barrel tool will not produce a correct crimp on a closed-barrel contact.

The ratchet mechanism ensures the crimp completes fully before the tool releases. A partial crimp that the technician stops mid-cycle produces a contact that will fail. Always complete the ratchet cycle before removing the contact from the tool.

After crimping, pull-test every contact before inserting it into the housing. A properly crimped contact resists 20+ newtons of pull force. If the contact pulls off the wire at any reasonable tension, the crimp has failed and the contact should be discarded and the wire recrimped.
