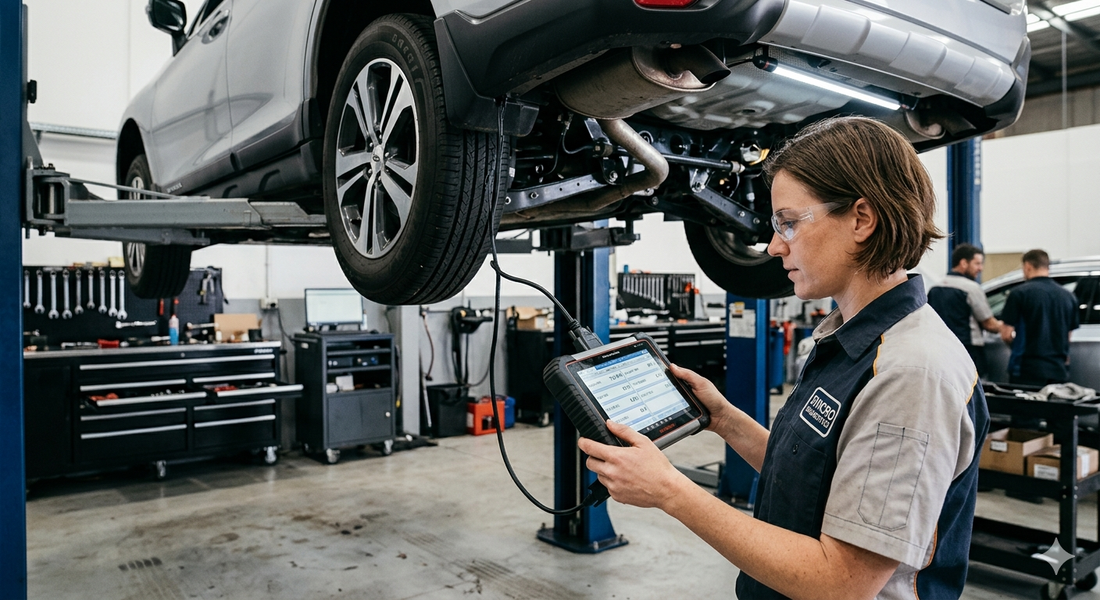

How to Diagnose Vehicle Fault Codes Without Sending it to the Dealer

The Cost of Parts Swapping

Parts swapping is one of the most expensive habits in automotive repair. A technician replaces a sensor, the fault comes back, replaces another part, still comes back — and by the time the actual cause is found, the customer has paid for three parts they didn't need and the workshop has lost hours of labour on a job that should have taken one.

The industry is moving away from this approach, and the tools that make systematic diagnosis possible are now affordable enough for every workshop in Australia to own and use. OBD2 scanners — particularly those with live data capability — are the foundation of modern diagnostic workflow.

What OBD2 Scanning Actually Tells You

Every OBD2-compliant vehicle — all petrol and diesel vehicles sold in Australia since January 1996 — stores fault codes when a sensor reading falls outside expected parameters. These codes are not diagnoses. They are starting points.

A P0171 code (system too lean, bank 1) does not tell you the cause is a faulty MAF sensor. It tells you the air/fuel mixture is lean. The cause could be a vacuum leak, a clogged injector, a failing fuel pump, a faulty MAF sensor, or a dozen other things. The code points you to the system. Live data tells you what's actually happening.

Using Live Data for Accurate Diagnosis

Live data is the real power of an advanced OBD2 scanner. Rather than reading a stored code after the fault has occurred, live data lets you watch sensor outputs in real time while the fault is present — or while you recreate the conditions that trigger it.

Key parameters to monitor for common faults:

• Fuel trim (short term and long term) — STFT fluctuating wildly suggests a vacuum leak or MAF issue. LTFT consistently high or low indicates a systematic lean or rich condition.
• Oxygen sensor voltage — a slow-switching O2 sensor indicates a failing sensor rather than a fuel delivery fault
• MAF sensor g/s reading — compare against expected values for engine displacement and RPM
• Coolant temperature — a thermostat stuck open shows as a coolant temp that never reaches operating temperature
• Throttle position — useful for diagnosing idle and drivability faults

Freeze Frame Data

When a fault code is stored, most vehicles also store a freeze frame — a snapshot of sensor values at the exact moment the code was triggered. This is invaluable for intermittent faults that don't appear during a workshop test drive. The freeze frame tells you the vehicle's speed, RPM, coolant temp, fuel trim, and load at the moment of failure, which often reveals the exact conditions that trigger the fault.

Pending vs Confirmed Codes

OBD2 codes fall into two categories:

• Confirmed codes — the fault has occurred on two or more consecutive drive cycles and the check engine light is on
• Pending codes — the fault has occurred once but not yet confirmed. The light isn't on yet. These are early warning signs and often catch developing faults before they become customer complaints.

A thorough pre-service scan checks for both. Pending codes that turn into confirmed codes after a service can become a difficult conversation with the customer about what the workshop did or didn't do.

Readiness Monitors

After clearing codes or disconnecting the battery, OBD2 readiness monitors track whether all the vehicle's self-diagnostic routines have completed their test cycles. If a customer presents for a roadworthy inspection or emissions test, unset readiness monitors can cause a fail even if there are no active fault codes.

A basic OBD2 scanner shows readiness monitor status. For any vehicle that's had codes cleared or a battery disconnected, check that all monitors are set before returning it to the customer.

Basic vs Advanced Scanners — What Does a Workshop Need?

A basic OBD2 scanner reads and clears codes and is sufficient for quick fault identification and pre/post repair checks. An advanced scanner with live data, freeze frame, readiness monitors, and graphing capability is what a diagnostic workshop needs for systematic fault finding.

For auto electricians and workshops doing complex electrical diagnosis, live data is not optional — it's the difference between a systematic approach and guesswork.
