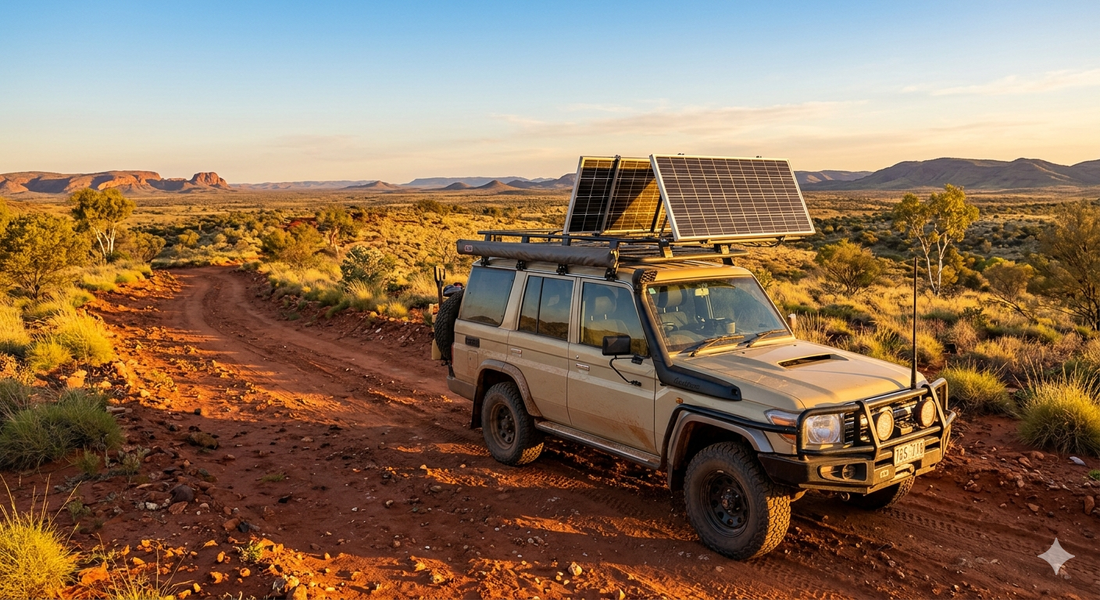

How to Set Up Solar Panels for 4WD Touring: The Complete Australian Guide

Why Solar Has Become Standard Kit on Australian 4WD Rigs

Alternator charging is excellent when you're driving. The moment you set up camp for more than a day, it stops working for you. Running an engine to charge a battery burns fuel, creates noise, and defeats the point of being somewhere remote. Portable solar fills the gap between what your alternator puts in during the drive and what your fridge, lights, and devices pull out overnight.

In 2026, portable solar panels have become as standard on serious Australian touring rigs as a fridge or a water tank. The technology has matured, prices have come down, and the efficiency gap between a good folding panel and a fixed roof panel has narrowed considerably.

How Solar Charging Works With a 4WD Setup

Solar panels generate DC electricity when exposed to light. That electricity flows through a charge controller — either PWM or MPPT — which regulates the voltage and current to match the battery's requirements. The charge controller prevents overcharging and, in the case of a lithium battery, ensures the correct charging profile is applied.

From the charge controller, the power flows to your auxiliary battery, which stores it for use whenever you need it. The solar panel charges during daylight; the battery powers your gear at night and on overcast days.

MPPT vs PWM Charge Controllers

This is one of the most important decisions in a 4WD solar setup, and one of the most misunderstood.

PWM (Pulse Width Modulation) controllers are older technology. They connect the panel directly to the battery and regulate charge by rapidly switching the circuit on and off. They are inexpensive and reliable, but they waste potential solar energy by operating the panel at battery voltage rather than the panel's optimal voltage.

MPPT (Maximum Power Point Tracking) controllers are more sophisticated. They continuously sample the panel's output and adjust the operating point to extract maximum power at all times. In real-world conditions — partial shade, varying temperatures, off-angle panels — an MPPT controller extracts up to 30% more energy from the same panel compared to a PWM controller.

For any serious 4WD touring setup, MPPT is the correct choice. The cost difference between a quality PWM and MPPT controller is relatively small compared to the total system cost, and the performance difference is meaningful over a week-long remote trip.

Panel Types — Fixed, Folding, or Flexible?

Fixed panels mounted on a roof rack are the most efficient long-term option. Monocrystalline panels carry 25-year performance warranties and degrade less than 0.5% per year. The trade-off is weight on the roof, which affects handling and compounds quickly with other roof rack accessories.

Folding panels are the touring sweet spot. A 120W, 160W, or 200W folding panel closes to a suitcase-sized package, stores flat against a cargo barrier, and opens to a freestanding panel you can position and angle manually throughout the day. Manual positioning means you can chase the sun and avoid shade, which extracts more real-world output than a fixed panel of the same rating.

Flexible panels bond to curved surfaces — canopy roofs, bonnets, camper trailer lids. They suit semi-permanent mounting on curved profiles where a rigid panel won't sit flush. They are less durable under foot traffic than rigid panels, so they're best suited to bonnets and canopies rather than walked roof racks.

Experienced tourers often run a combination: a fixed or flexible panel as a baseline contributor and a deployable folding panel that gets pulled out on static multi-day camps.

How to Size Your Solar Array

The sizing formula is straightforward:

Daily consumption (Ah) ÷ Average sun hours (4-5 hours in most of Australia) = Minimum panel wattage

For an 80Ah daily load: 80 ÷ 4.5 = approximately 180W minimum. A 200W panel provides comfortable headroom. Add 20-30% buffer for real-world inefficiencies, shade, and angle losses.

For the alternator-solar combination approach: size your solar to cover stationary days and let the alternator handle the bulk when you're driving.

Wiring the Solar Circuit Correctly

The solar panel cable runs from the panel's junction box to the charge controller, then from the controller to the auxiliary battery. Every positive cable in this circuit needs a fuse rated to the cable's current capacity, installed as close to the battery as possible.

Panel junction boxes often use MC4 connectors — these are weatherproof and suitable for the exposed panel position. The cable run from the junction box to the charge controller should be waterproof heat shrink butt connectors at any join point. Use wiring loom tape to bundle the cable run along any fixed route through the vehicle.

The Anderson plug on the external solar input socket gives you a universal connection point for a portable folding panel when you set up camp. A 50A Anderson socket mounted externally accepts both a solar panel lead and a portable fridge lead — the most versatile external connection point on any touring 4WD.
