How to Use Heat Shrink Tubing: The Right Way to Finish Any Electrical Joint

Heat shrink tubing is one of those products that looks simple but makes a significant difference when it's used correctly — and almost no difference when it's not. Used properly, it seals a wire joint against moisture and abrasion, holds insulation in place, and gives your wiring a professional finish. Used wrong, it slides out of position, doesn't seal, or splits the first time it gets hot.

This guide covers everything you need to know to use heat shrink tubing correctly on automotive, marine, and general electrical wiring.

What Heat Shrink Tubing Is and How It Works

Heat shrink tubing is a plastic sleeve — typically made from polyolefin — that shrinks in diameter when heat is applied to it. The ratio printed on the packaging tells you how much it shrinks. A 2:1 ratio tube that starts at 10mm in diameter will shrink down to 5mm when heated. A 3:1 ratio tube shrinks even further, making it useful for covering irregular shapes or chunky connectors.

The tubing works by physically gripping the wire or joint it's covering once it shrinks down around it. Standard polyolefin tubing provides electrical insulation and a degree of mechanical protection. Adhesive-lined heat shrink — which has a layer of hot-melt adhesive inside — flows around the wire as it heats, creating a waterproof seal. Adhesive-lined tubing is the correct choice for marine wiring, external connections, or anywhere moisture is a concern.

Chosing the Right Size

The most common mistake with heat shrink tubing is choosing the wrong diameter. If the tube is too small, it won't fit over the connector. If it's too large, it won't grip the wire properly after shrinking.

As a general rule, choose a tube with a pre-shrink diameter that's roughly 1.5 to 2 times the diameter of the object you're covering. This gives enough clearance to slide the tube into position before applying heat, while ensuring the tube grips firmly once it shrinks.

For common automotive wire gauges, thin sensor and signal wires in the 0.5–1.5mm² range suit 3–5mm pre-shrink diameter tubing. Standard 4mm² and 6mm² automotive cable works well with 8–12mm tubing. Heavier cable like 13mm² used on Anderson plug circuits suits 16–20mm tubing. For connector housings and bulkier joins, go larger and use 3:1 ratio tubing if you need the extra coverage.

Cutting to Length

Cut your heat shrink tubing before you make the crimp or solder joint. It's much easier to thread tubing onto a loose wire end than to feed it over a bulky connector after the fact.

The length of tubing you use should extend at least 10–15mm beyond each end of the joint you're covering. This ensures the tubing overlaps onto the insulation of the wire on both sides, sealing the joint completely. Tubing that just covers the bare metal of a joint without overlapping the insulation isn't doing its job — moisture can still wick in from the sides.

Positioning Before Applying Heat

Slide the pre-cut tubing onto one wire before you make the connection, then push it well back out of the way while you crimp or solder. Once the joint is made, slide the tubing back over it and position it so it extends equally past both ends of the joint.

If you forget to thread the tubing on before making the connection — which happens to everyone at some point — you'll either need to cut the joint and redo it, or use a split heat shrink sleeve, which can be wrapped around an existing joint.

Applying Heat Correctly

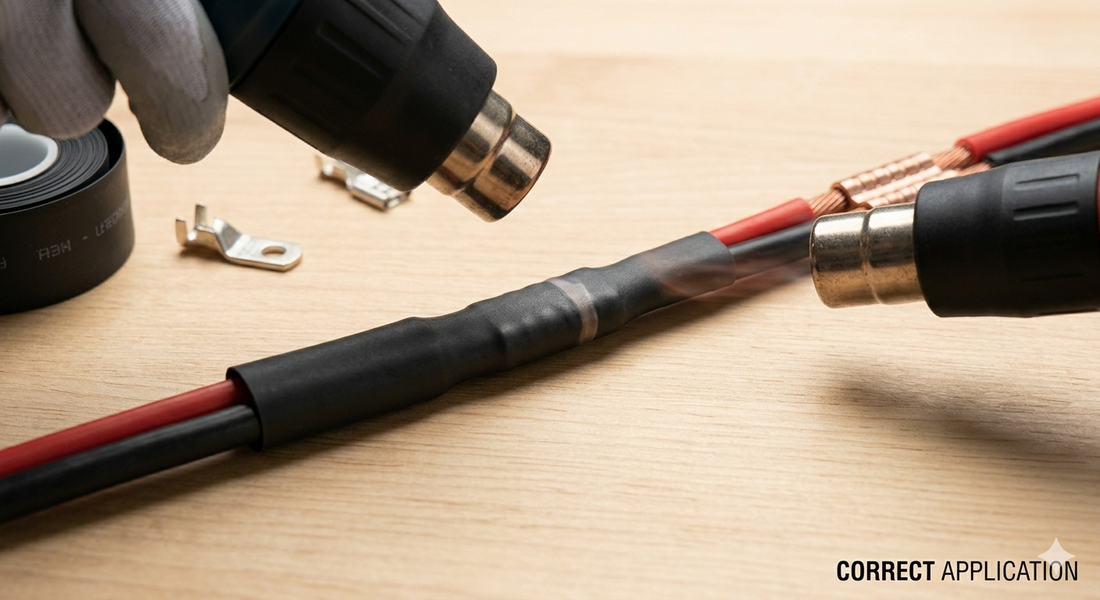

The right tool is a heat gun. Hold it about 50–80mm from the tubing and move it slowly along the length, working from one end to the other rather than holding it in one spot. You'll see the tubing begin to shrink almost immediately. Keep the heat gun moving and watch the tubing conform to the wire underneath. Once it's fully shrunk — smooth, tight, no wrinkles or loose sections — you're done.

The most common heat application mistake is using an open flame. A lighter or gas torch creates very uneven, concentrated heat that scorches the tubing, burns through it, or shrinks one section while leaving others loose. Always use a heat gun.

Using Adhesive-Lined Heat Shrink

If you're using adhesive-lined tubing, you'll see a small amount of hot-melt adhesive flow out from each end of the tubing as it heats. This is correct — it means the adhesive has melted and is sealing around the wire. Wipe off any excess with a cloth while it's still warm and pliable.

Adhesive-lined heat shrink takes slightly more heat and slightly longer to fully activate than standard tubing. If you see the outer tubing shrink but no adhesive flowing from the ends, apply a little more heat.

Common Uses in Automotive and Marine Wiring

Heat shrink tubing is used anywhere a wire joint needs insulation and protection. The most common applications are over crimped butt connectors and ring terminals to provide a second layer of insulation and moisture protection, over soldered joints on marine and outdoor wiring, over the ends of cut cable to prevent fraying, and for colour-coding wires where two circuits share the same cable colour.

In a professional automotive wiring job, you'll see heat shrink used at every crimp and every terminal — it's the mark of a tidy, considered installation that won't corrode or fail in the field.
