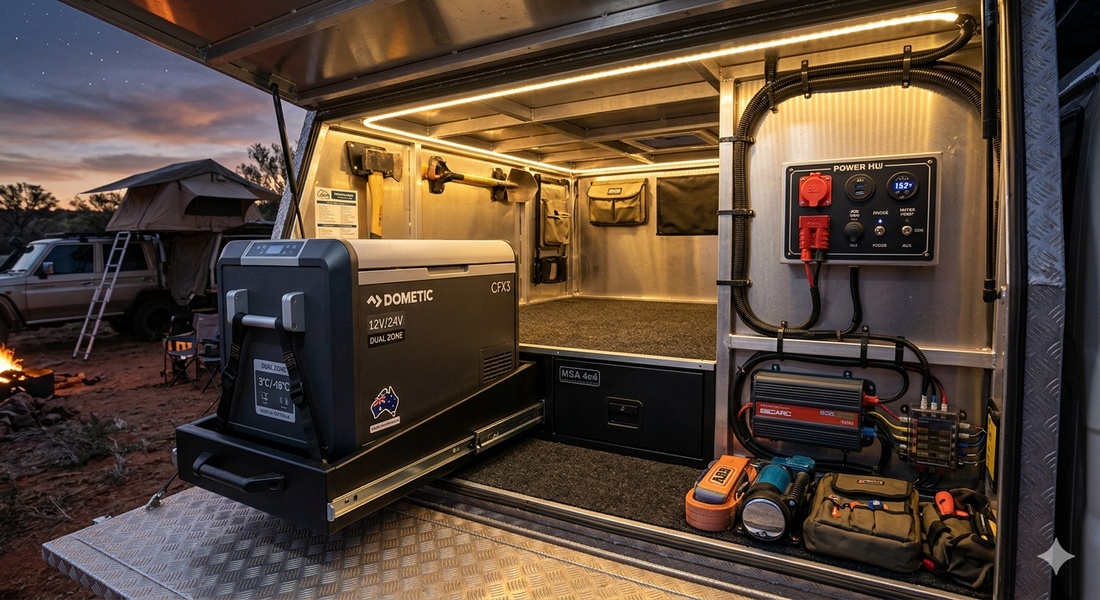

How to Wire a 4WD Canopy: Lights, Fridge and Charging Explained

The 4WD Canopy Electrical Setup: What Most People Get Wrong

A canopy or tray setup fundamentally changes your 4WD's electrical requirements. You're adding a dedicated workspace or living area with its own power demands — lighting, a fridge, charging points, possibly a compressor — all running off the vehicle's electrical system. Done properly, it's one of the most functional setups you can have. Done without planning, it becomes a tangle of undersized cables, blown fuses, and flat batteries.

This guide covers how to wire a 4WD canopy setup correctly from scratch.

Plan the Loads First

Before running a single cable, list every device the canopy setup will power:

• Interior LED lighting (strips and spotlights)
• 12V compressor fridge
• 12V accessory sockets and USB charging points
• Air compressor for tyres
• 12V water pump (if fitted)
• Inverter for 240V tools or appliances
• External work light or LED bar

Calculate the total daily amp-hour consumption using the method described in our battery sizing guide. This tells you how large your auxiliary battery needs to be and how much solar or DC-DC charging you need to keep up with it.

The Power Source: Auxiliary Battery in the Canopy

Most serious canopy setups run a dedicated auxiliary battery inside the canopy — either on a slide-out battery tray or mounted in a fixed bracket. This keeps the heavy battery mass low and central, and puts it close to the loads it powers.

The battery connects to the DC-DC charger or VSR via a cable run from the engine bay. This cable — typically 6AWG (13mm²) for a 50A circuit — runs through the firewall or along the chassis rail to the canopy. Every positive cable needs a fuse as close to the source battery as possible — within 300mm of the engine bay battery terminal.

A 50A Anderson plug at the rear of the vehicle gives external access to the battery for connecting a portable fridge lead or solar panel without opening the canopy.

Lighting the Canopy Interior

LED strip lighting is the standard for canopy interiors. A 3-metre LED strip draws approximately 1-2A, which is minimal compared to fridge loads. Run the lighting circuit through its own inline fuse — a 10A fuse on a 16AWG cable is more than adequate — with a rocker switch inside the canopy for independent control.

If you want lighting that turns on automatically when the canopy is opened, a door switch (the same type used on vehicle doors to activate interior lights) wired in series with the LED strip handles this without any additional switches.

Waterproof LED marker lights on the exterior of the canopy — amber side markers and red rear markers — connect to the vehicle's existing lighting circuit via the 7-pin flat trailer connector if the canopy is on a ute tray, or directly to the tail light circuit if it's a permanent installation.

Fridge Circuit

The 12V fridge is almost always the highest continuous load in a canopy setup. Wire it directly from the auxiliary battery positive terminal through a fuse (typically 15-20A for most compressor fridges) and a switch, or simply leave it permanently connected and let the battery management system control the low-voltage cutoff.

A 12V accessory socket (cigarette lighter style) inside the canopy lets you plug in a portable fridge without a permanent installation — useful for setups where the fridge gets used both inside the canopy and outside on a camp table.

12V Accessory Points and USB Charging

A small distribution panel or fuse block inside the canopy with 2-4 independently fused outputs covers most accessory needs. Each output gets its own blade fuse rated to the circuit — typically 10-15A for accessory sockets and 5A for USB charging points.

Waterproof connectors on any accessory that might get exposed to rain during loading or unloading — especially on the external face of the canopy — prevent the corrosion that kills unprotected sockets within a season or two.

Cable Management and Protection

All cable runs inside the canopy should be bundled with wiring loom tape and secured at regular intervals with cable ties. Cables that pass through the canopy wall or body panels need rubber grommets to prevent chafing on bare metal edges — a frayed cable on a sharp edge is a fire risk.

Anywhere a cable run might be exposed to moisture — around the rear door, in wheel arch areas, along the floor — use high-temperature rubber electrical tape on any joins and ensure all connections use waterproof heat shrink butt connectors rather than standard terminals.

The External Anderson Plug

One of the most useful additions to any canopy electrical system is a 50A Anderson socket mounted on the external rear face of the canopy. This gives you:

• A universal connection point for a portable solar panel when stationary
• A plug-in point for a portable fridge on a camp table
• The ability to charge another vehicle's battery from your setup
• A quick-disconnect point for servicing the auxiliary battery
