How to Wire a Dual Battery System: A Plain-English Guide
A dual battery system lets you run a fridge, lights, or any other 12V load from a second battery without any risk of flattening the one that starts your engine. It's one of the most useful upgrades you can make to a 4WD or camper, and with the right components, it's a straightforward job for anyone comfortable with basic automotive wiring.
This guide explains how a dual battery system works, what components you need, and how the wiring goes together — in plain English, without unnecessary complexity.
How It Works
The core principle is simple: your alternator charges your main starting battery as normal, and a separate device manages the charging of a secondary battery in parallel. The secondary battery powers your accessories, and the two batteries are electrically separated when the vehicle is off — so a flat accessory battery can never strand you.
There are two main approaches to achieving this separation: a battery isolator (also called a VSR or voltage-sensitive relay) and a DC-DC charger (also called a battery-to-battery charger or B2B charger). Understanding the difference helps you choose the right setup for your situation.
Isolator vs DC-DC Charger — Which Do You Need?
A battery isolator is the traditional approach. It's a relay that connects the two batteries when the alternator is running and charging (usually above 13.2V), and disconnects them when the voltage drops — preventing the accessories from draining the starter battery. Isolators are simple, affordable, and effective for older vehicles with conventional alternators.
The problem is that modern vehicles — anything with a smart alternator, which includes most vehicles built after around 2015 — don't run the alternator at full output continuously. They pulse the charge to manage fuel economy and emissions. A voltage-sensing isolator can't distinguish between a low alternator output and a low battery, so it can drop out mid-drive and fail to charge the secondary battery properly.
A DC-DC charger solves this. It takes whatever voltage the alternator is producing, steps it up to the correct charge voltage for your secondary battery, and delivers a proper multi-stage charge profile regardless of what the alternator is doing. DC-DC chargers also handle lithium batteries correctly — a standard alternator can't charge LiFePO4 batteries properly without one.
If you drive a vehicle newer than around 2015, or you're using a lithium secondary battery, a DC-DC charger is the right choice.
What You Need
For a typical dual battery setup you'll need a secondary battery, a DC-DC charger or isolator, appropriate cable, a fuse on the positive cable close to the source battery, a way to mount the secondary battery securely, and connectors to join everything together.
Anderson plugs are the standard connection point in Australian dual battery setups. A 50A Anderson plug on the DC-DC charger output and battery terminal lets you disconnect the accessory battery quickly for servicing, connect a portable fridge lead, or plug in a solar panel from outside the vehicle. Most auto electricians install a 50A Anderson socket on the vehicle exterior for exactly this reason.

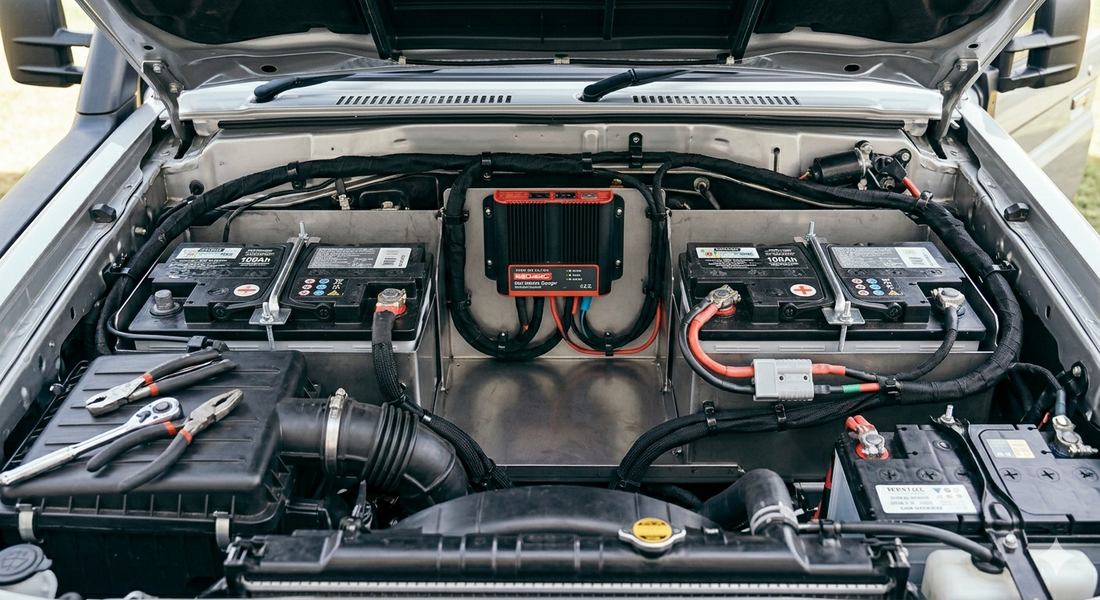

The Basic Wiring Layout
The positive cable runs from the main battery, through a fuse sized to the cable — typically 40–80A for a dual battery circuit — to the input of the DC-DC charger or isolator. The output of the charger connects to the positive terminal of the secondary battery. Negative cables run from each battery to a common chassis earth point, or directly between the two battery negatives.
Cable sizing matters. Undersized cable creates voltage drop and heat. For a 50A DC-DC charger, 6AWG (13mm²) cable is the minimum on the input side — the same cable that suits a 50A Anderson plug. Some installers run heavier cable on the main input run to minimise voltage drop over distance.
Every positive cable in the circuit needs a fuse as close to the source battery as possible. This protects the cable from a short circuit — the cable is the thing you're protecting, not the device at the end of it.
Connecting Your Accessories
Once the dual battery system is installed, your accessories connect to the secondary battery — either directly or through a distribution block or fuse box. A 12V fridge typically draws 4–8 amps, so a 10A fused circuit off the secondary battery is sufficient. Lighting bars, air compressors, and other higher-draw accessories get their own fused circuits sized accordingly.
An Anderson socket mounted on the outside of the vehicle — on the bullbar, on the side of a canopy, or at the rear — gives you a universal plug-in point for a portable fridge, a solar panel lead, or a slave lead to charge another vehicle's battery.
Adding Solar
A DC-DC charger with a built-in MPPT solar input is one of the most popular setups for campers who spend time off the grid. The solar panels connect to the charger's solar input, and the charger manages both the alternator charge and the solar charge simultaneously, prioritising whichever source is producing more power at any given time.
A standalone MPPT solar charge controller connected directly to the secondary battery is the alternative — it works independently of the DC-DC charger and can be a simpler and more cost-effective solution for setups where the vehicle isn't driven regularly.
Getting Help
A dual battery system is well within reach of a confident DIYer, but if you're not comfortable with automotive wiring, an auto electrician will typically install one in two to four hours. The components you supply — cable, connectors, fuse holders, and the charger or isolator — make up the bulk of the cost, so sourcing them yourself is a good way to control the budget.
