A Trade Guide to Fusing Automotive Circuits Correctly
Share
The Most Misunderstood Rule in Automotive Wiring
Ask most technicians what a fuse protects and the answer is usually “the device”. It's wrong. A fuse protects the cable. This distinction matters enormously when selecting fuse ratings for automotive circuits, and getting it wrong is one of the most common causes of wiring fires in modified and aftermarket-equipped vehicles.
What a Fuse Actually Does
A fuse is a deliberately weak link in the circuit. When more current flows than the fuse is rated for, the fuse element melts and opens the circuit. This stops current flow before the cable overheats to the point of melting its insulation — which is what causes a wiring fire.
The fuse rating must be chosen based on the cable's current-carrying capacity — not the device's maximum draw. If a 10AWG cable can safely carry 30 amps, a 25A fuse protects that cable. A 40A fuse on the same cable does not — the cable will overheat before the fuse blows.
Fuse Rating vs Cable Ampacity
Common cable sizes and their current-carrying capacity in automotive wiring:
| Cable Size | Max Current (Sustained) | Recommended Fuse |
|---|---|---|
| 20 AWG (0.5mm²) | 5A | 3A–5A |
| 18 AWG (1.0mm²) | 10A | 7.5A–10A |
| 16 AWG (1.5mm²) | 15A | 10A–15A |
| 14 AWG (2.5mm²) | 20A | 15A–20A |
| 12 AWG (4mm²) | 25A | 20A–25A |
| 10 AWG (6mm²) | 35A | 25A–30A |
| 8 AWG (8mm²) | 50A | 40A–50A |
| 6 AWG (13mm²) | 65A | 50A–60A |
Where to Install the Fuse
The fuse must be installed as close to the source battery as possible — within 300mm is the general rule. This protects the full length of the cable from the battery to the load. A fuse installed at the load end protects almost nothing — the unfused cable between the battery and the fuse is the fire risk.
In practice, this means:

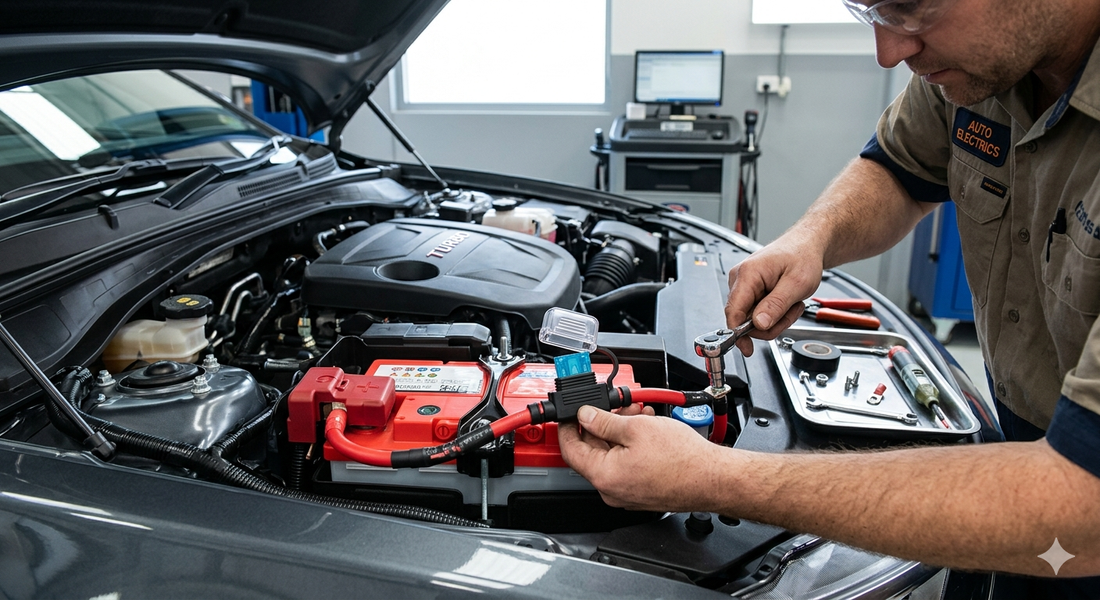

- Aftermarket accessory circuits — inline fuse holder within 300mm of battery positive terminal
- Anderson plug charging circuits — inline fuse between battery and Anderson plug
- Auxiliary distribution boxes — main fuse on the feed cable close to the battery, individual fuses on each output circuit
- DC-DC charger installations — fuse on the input cable at the source battery
The Three Blade Fuse Types
Australian workshops deal with three blade fuse types across their vehicle fleet:
Mini blade (ATC/ATO) — the most common type in modern vehicles. 19mm tall. Found in the main fuse box of most vehicles from the 1980s onwards. Available in 1A to 40A ratings.
Standard blade — larger format used in older vehicles and high-current applications. 29mm tall. Same colour coding as mini blade.
Micro blade (ATM) — smaller format increasingly common in European and Japanese vehicles. 15.5mm tall. Not interchangeable with mini blade despite visual similarity.
Keeping a comprehensive assortment of all three types on the workshop bench avoids the situation where the only available fuse is the wrong type or wrong rating — leading to incorrect substitutions.
Inline Fuse Holders for Aftermarket Circuits
Every aftermarket circuit added to a vehicle needs its own fuse. Inline blade fuse holders installed in the positive feed cable are the simplest solution. For workshop use, waterproof inline fuse holders rated to the correct current protect the circuit and survive the vehicle's environment.
ATC/ATO inline holders suit the mini blade fuses used in most Australian vehicles. Select a holder rated above the fuse rating — a 30A holder for a 20A fuse, for example — to ensure the holder itself is never the weak point in the circuit.
When a Fuse Keeps Blowing
A repeatedly blowing fuse is a symptom — not the fault. The correct response is to diagnose why the circuit is drawing excess current, not to fit a larger fuse. Fitting a fuse with a higher rating than the cable ampacity to stop it blowing removes the protection the cable has and creates a fire risk.
Common causes of repeated fuse blowing:
- Short circuit in the load device or its wiring
- Undersized cable for the load
- Fuse rating too low for a legitimate in-rush current (motor loads have high starting current)
- Corroded or high-resistance connection causing localised heat and intermittent short
