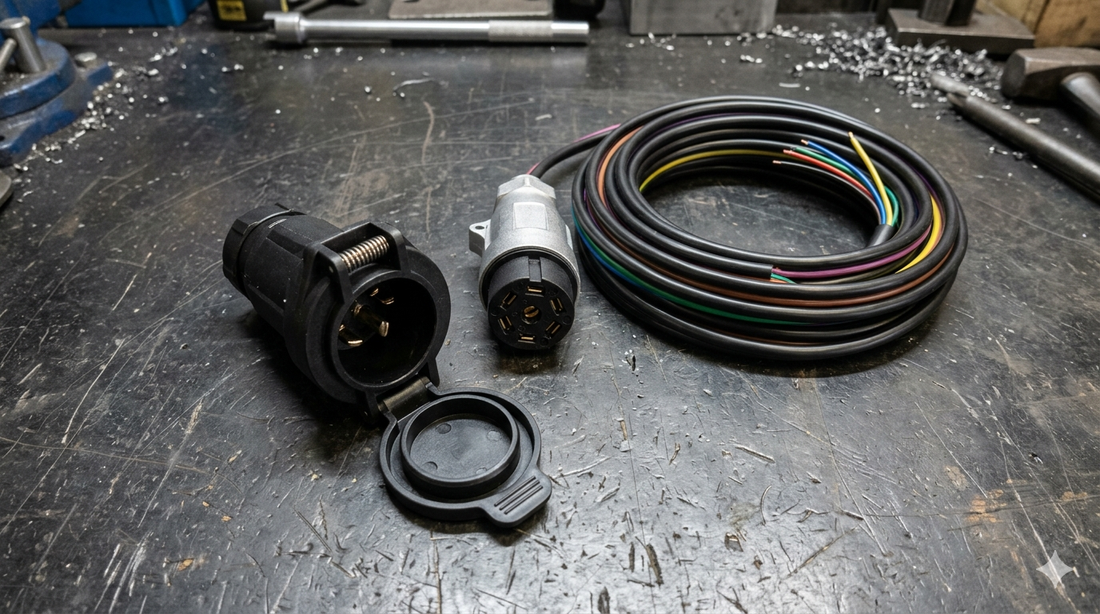

Trailer Wiring Guide Australia: 7-Pin and 12-Pin Connectors Explained

Trailer Wiring Guide Australia: 7-Pin and 12-Pin Connectors Explained

Trailer wiring is one of those things that seems straightforward until something doesn't work. A brake light that flickers, a reverse light that doesn't trigger the electric brakes, a flat battery on the trailer — they all come back to how the wiring is connected and whether it's been done correctly.

This guide covers the two plug types used on Australian trailers, explains what each pin does, and gives you the information you need to wire a trailer plug correctly or diagnose a fault when something isn't working.

The Two Australian Trailer Plug Standards

Australia uses two main trailer connector types: the 7-pin flat connector and the 12-pin round connector. These are not compatible with each other, and they're not the same as the connectors used in Europe or North America — so if you're buying a trailer plug or socket from overseas, check the pin configuration carefully.

The 7-pin flat is the traditional standard and is still the most common connector on boats, box trailers, car trailers, and general-purpose trailers. It handles the basic functions most trailers need — running lights, brake lights, indicators, and electric brakes.

The 12-pin round is the modern standard for caravans and camper trailers. It carries all the functions of the 7-pin flat and adds additional circuits for 12V power to the caravan battery, reverse lights, and auxiliary functions. Most modern tow vehicles come with a 12-pin socket fitted from the factory.

7-Pin Flat: What Each Pin Does

The 7-pin flat uses a row of seven spade-style pins in a flat housing. The standard Australian wiring for each pin is as follows.

Pin 1 is the left indicator, wired yellow. Pin 2 is the reverse lights, wired black. Pin 3 is the earth return for the trailer, wired white — this is the most critical connection and the most common source of faults. Pin 4 is the right indicator, wired green. Pin 5 is the right brake or combined tail and brake light on the right side, wired brown. Pin 6 is the brake controller output for electric brakes, wired blue. Pin 7 is the left brake or combined tail and brake light on the left side, wired red.

The earth on pin 3 is the single most important wire in the trailer loom. A corroded or loose earth connection causes more trailer electrical faults than anything else — flickering lights, non-functioning brakes, blown globes, and erratic brake controller behaviour can all trace back to a poor earth.

12-Pin Round: What the Additional Pins Do

The 12-pin round connector includes all seven functions of the flat plug and adds five additional circuits. The same indicator, earth, brake light, and electric brake circuits carry across from the 7-pin standard. The additional pins provide 12V power from the tow vehicle to charge the caravan battery while driving, a second earth return for the auxiliary circuits, a reversing camera trigger or auxiliary power circuit, and additional circuits for manufacturer-specific functions.

The 12V charging circuit on the 12-pin connector is what charges your caravan's battery from the vehicle's alternator while you drive. On older vehicles this was a direct alternator feed. On modern vehicles with smart alternators, a DC-DC charger is required to charge the caravan battery properly, because the 12-pin connector voltage alone isn't sufficient to trigger a reliable charge.

Common Wiring Faults and How to Fix Them

The most common trailer wiring fault is a bad earth. If you're seeing flickering lights, lights that work on one side but not the other, or electric brakes that are erratic, check the earth connection at the trailer plug and at the trailer chassis first. The earth wire should have a solid, corrosion-free connection to both the vehicle chassis and the trailer frame. Star washers, clean bare metal contact, and a proper crimped terminal are the basics — a loose self-tapper into painted metal is not.

Corroded pins in the trailer plug itself are the second most common cause of faults, particularly on boats and trailers that get wet regularly. For marine trailers especially, inspecting and cleaning the trailer plug contacts as part of annual maintenance is worth the few minutes it takes.

Wires that have been joined with a twist and tape will eventually fail. The correct repair is a proper crimped butt connector with heat shrink over the top, or a waterproof heat shrink butt connector that creates a sealed, waterproof joint in a single step. Twist-and-tape joints corrode, pull apart under vibration, and create resistance in the circuit that causes voltage drop and flickering lights.

Upgrading to Anderson Plugs

Many trailer owners fit an Anderson plug to their setup in addition to the standard flat or round connector. A 50A Anderson plug mounted on the drawbar or near the trailer battery gives you a universal connection point for a solar panel, a portable fridge, or a battery charger without needing to modify the main trailer plug wiring.

On a caravan or camper with a battery, an Anderson socket on the exterior of the van means you can connect a solar blanket or a charging lead from another vehicle quickly and cleanly, with a connector rated to handle the current properly.

A Quick Note on LED Trailer Lights

If you've upgraded your trailer to LED lights and now have problems with indicator hyper-flash or lights that stay on dimly when they should be off, the cause is the lower resistance of LEDs compared to incandescent globes. The vehicle's flasher relay is calibrated for incandescent load. The fix is either an electronic flasher relay in the tow vehicle, or a load resistor wired in parallel with each LED indicator circuit on the trailer to bring the total resistance back into the expected range.
