Why Your New 4WD Needs a DC-DC Charger — Not a VSR

The Problem With Modern 4WDs and Standard Battery Isolators

If you've bought a new 4WD in the last decade and wired in a dual battery system using a voltage-sensing relay (VSR), there's a good chance your second battery isn't getting a proper charge. Here's why — and what to do about it.

Almost every 4WD sold in Australia since around 2015 uses a smart alternator. Unlike older alternators that ran at constant output, smart alternators are controlled by the vehicle's ECU and vary their output to manage fuel economy and reduce emissions. They pulse charge the battery, drop voltage intentionally, and don't simply run at 14.4V whenever the engine is on.

The problem is that a VSR is a dumb device. It connects the two batteries when it sees voltage above its threshold — typically 13.2V — and disconnects them when voltage drops. A smart alternator dropping to 12.8V mid-drive to save fuel looks exactly like a flat battery to a VSR, which then disconnects the second battery just when it should be charging.

What a DC-DC Charger Actually Does

A DC-DC charger — also called a battery-to-battery charger or B2B charger — takes a completely different approach. Instead of sensing voltage and switching a relay, it actively converts whatever voltage the alternator produces into the correct charge voltage for your secondary battery.

It doesn't matter if the smart alternator is running at 13.0V, 14.2V, or anywhere in between. The DC-DC charger steps up or down as needed and delivers a proper three-stage charge profile — bulk, absorption, and float — to your second battery every single time.

This matters for two reasons:

• Your second battery actually gets fully charged — not just topped up to whatever the smart alternator happens to be producing
• Lithium batteries require it — LiFePO4 batteries cannot be charged correctly from a standard alternator or VSR setup. A DC-DC charger is mandatory for lithium secondary batteries

Which Vehicles Are Affected?

If your 4WD was built after approximately 2015 and is one of the following, assume it has a smart alternator:

• Toyota LandCruiser 200 Series (post-2015) and 300 Series
• Toyota HiLux (GUN series, 2015 onwards)
• Ford Ranger (PXII, PXIII, next-gen)
• Isuzu D-MAX (2012 onwards)
• Mitsubishi Triton (MQ, MR series)
• Mazda BT-50 (2020 onwards)
• Nissan Navara (D23 onwards)

If you're unsure, the easiest test is to watch the voltage on your main battery with a multimeter while driving. If the voltage varies significantly — dropping to 12.8V then spiking to 14.5V — you have a smart alternator.

Do I Need to Replace My Existing VSR?

If you already have a VSR installed on a post-2015 vehicle, yes — replace it with a DC-DC charger. The VSR isn't broken, it just isn't compatible with how modern alternators work.

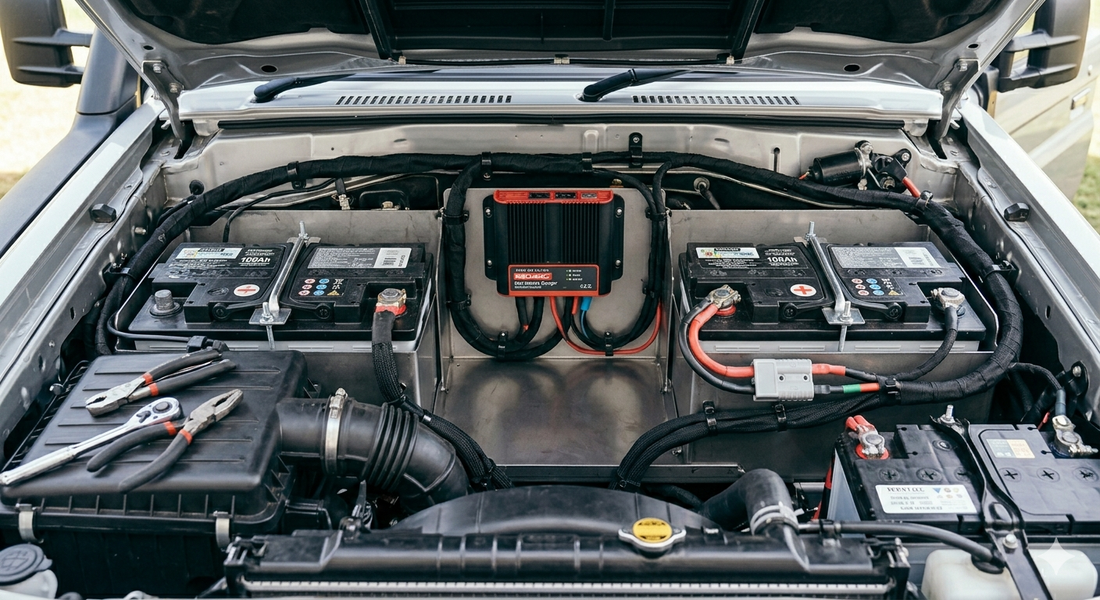

The DC-DC charger installs in the same position as the VSR — between the main battery and the secondary battery — and typically requires the same cable sizing. Most 20A–40A DC-DC chargers suit a 6AWG (13mm²) cable, the same as a 50A Anderson plug circuit.

What About Solar Input?

Most DC-DC chargers sold in Australia include a built-in MPPT solar input. This allows you to connect solar panels directly to the charger, which then manages both the alternator charge and the solar charge simultaneously — prioritising whichever source is producing more power.

For touring setups that spend time stationary — campsites, fishing spots, remote locations — the solar input is as important as the alternator input. A combined DC-DC/MPPT unit handles both with one device and one installation.

Anderson Plugs in a DC-DC System

The 50A Anderson plug remains the standard connection point in Australian dual battery setups, regardless of whether you use a VSR or DC-DC charger. The Anderson plug on the charger output connects to the secondary battery, and a second Anderson socket mounted externally gives you a universal plug-in point for a portable fridge lead or solar panel.

For DC-DC charger installations, a 50A Anderson plug on the input side also makes it easy to disconnect the charger from the main battery for servicing without cutting cables.
