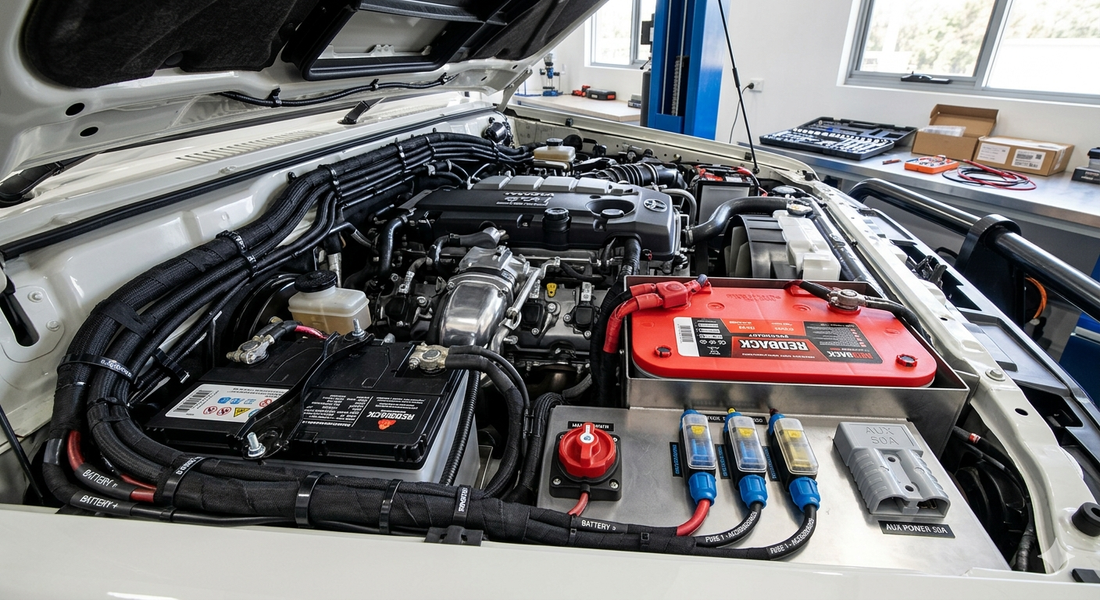

Workshop Wiring Best Practices: A Trade Guide for Auto Electricians

Why Wiring Quality Determines Job Quality

In auto electrical work, the wiring is the job. A perfectly diagnosed fault, correctly replaced component, and accurate invoice means nothing if the repair wiring fails in six months because a join was twisted and taped instead of properly crimped and sealed. Warranty callbacks on electrical work almost always trace back to a poor connection — not a failed component.

These are the wiring practices that separate a professional auto electrical installation from one that will be back on the hoist.

Crimping vs Soldering — What Does the Industry Actually Use?

Soldering is appropriate for certain applications but is not the default choice for production automotive wiring. Vehicle manufacturers use crimped connections throughout their wiring harnesses for good reasons: a properly crimped connection is gas-tight, vibration-resistant, and doesn't suffer from the brittleness that solder joints develop when subjected to repeated flexing and thermal cycling.

Soldering is appropriate for:

• PCB and circuit board work
• Specific connector types designed for soldering
• Situations where a crimping tool isn't available and the joint is accessible for inspection

Crimping is appropriate for:

• All inline joins in a vehicle wiring harness
• Terminal connections to connectors
• Any join that will be enclosed or inaccessible after installation

The critical variable with crimping is using the correct tool. A ratchet crimp tool that releases only when the correct crimp pressure is applied produces a consistent, gas-tight joint every time. A non-ratchet plier-style tool relies on the technician's judgement and produces inconsistent results.

Waterproof Heat Shrink Butt Connectors — The Professional Standard

Waterproof heat shrink butt connectors are the correct choice for inline joins in any automotive wiring application. The dual-wall construction — a copper crimp barrel inside a heat shrink tube lined with hot-melt adhesive — creates a join that is mechanically sound, electrically reliable, and fully sealed against moisture ingress.

Sizing matters. The colour coding matches AWG wire gauge:

• Red — 22 to 16 AWG (thin wires, sensors, signal circuits)
• Blue — 16 to 14 AWG (standard accessory circuits)
• Yellow — 12 to 10 AWG (high-current circuits, power feeds)

A common mistake is using a red connector on a 12AWG wire because it's the only one in the tray. The wire won't crimp correctly and the seal won't form properly around it. Always use the correct size.

Wiring Loom Tape — Protecting the Harness

Any new wiring run that runs alongside factory wiring or through a body section should be wrapped with wiring loom tape — the same cloth-backed, self-fusing tape used in factory harnesses. It protects against abrasion where wires contact body panels, deadens vibration noise, and gives the installation a professional factory finish.

Apply the tape at a consistent angle with a 50% overlap on each pass. It fuses to itself without adhesive residue and can be unwrapped cleanly if the harness needs to be accessed later.

Electrical Tape in the Engine Bay

Standard PVC electrical tape is not suitable for engine bay use. It softens in heat, loses adhesion, and can unravel from joins — leaving bare wire. In an engine bay or any environment above 60°C, high-temperature rubber electrical tape is the correct choice. It maintains grip and flexibility across a wide temperature range and provides proper insulation for the life of the vehicle.

Cable Management and Routing

Professional wiring doesn't just work — it looks like it belongs. Key principles:

• Route new cables alongside existing loom where possible, secured with cable ties at regular intervals
• Protect any cable that passes through a body panel with a rubber grommet
• Leave service loops at connectors and components so the cable isn't under tension
• Secure cables away from moving parts, heat sources, and sharp edges
• Label any added circuit at the fuse box
