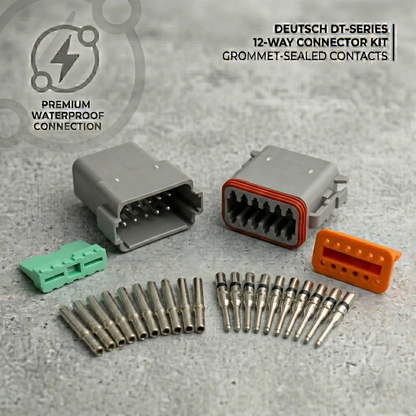

Deutsch Connector DT-Style | 2–8 Pin Waterproof | IP67 Automotive Marine | Plug & Socket

Built for automotive, off-road, marine and industrial wiring where a reliable sealed connection is non-negotiable,

these grey DT-style connectors are available in six pin configurations — 2, 3, 4, 6, 8 and 12-pin — and in both

plug (male pin) and socket (female socket) versions. Every connector ships ready to crimp: the correct quantity of

Size 16 contacts is included along with the secondary wedgelock and pre-installed silicone seals.

The PA66 thermoplastic housing and dual silicone seals deliver IP67 waterproof protection, shrugging off

pressure washing, river crossings, rain and constant vibration. Each contact circuit handles a continuous 13 A,

making these connectors equally at home on a sensor feed or a driving-light bar. The integrated latch and

secondary wedgelock lock contacts firmly in place and confirm correct seating in a single step — no guessing, no

callbacks.

Select your pin count and type (plug or socket) from the variant dropdown. Plug (male) housings carry pin

contacts; socket (female) housings carry socket contacts. A plug mates with its matching socket of the same pin

count.

Key Features

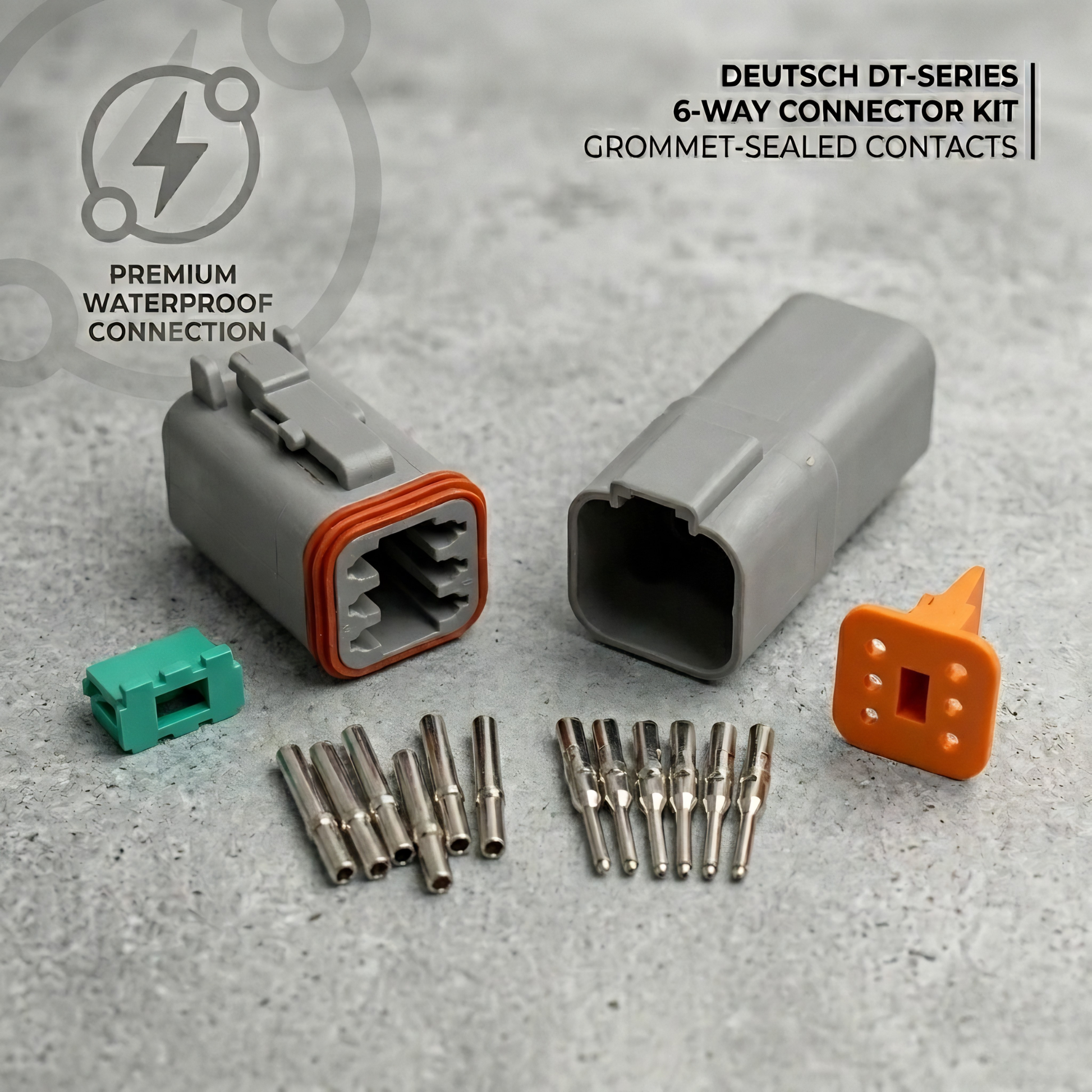

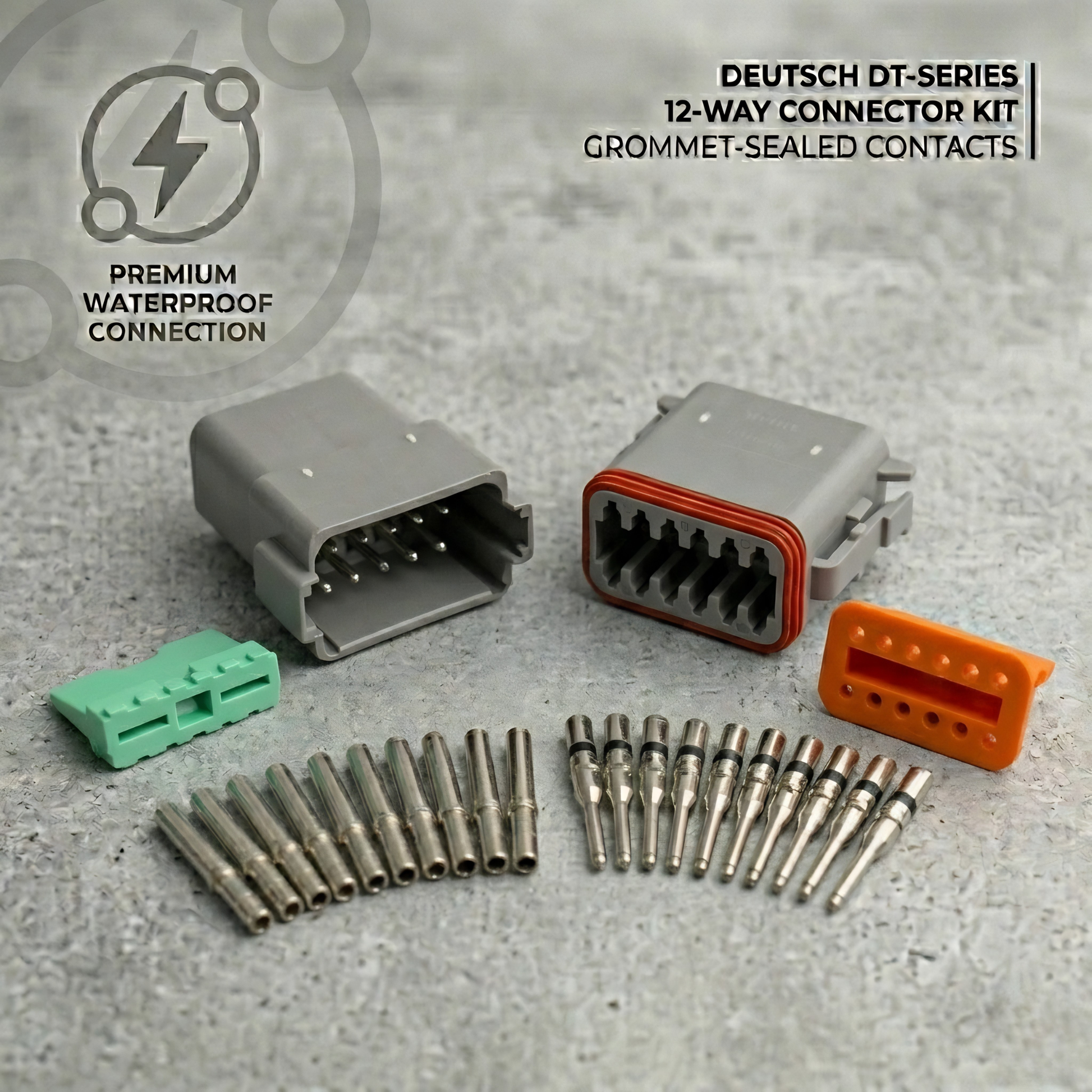

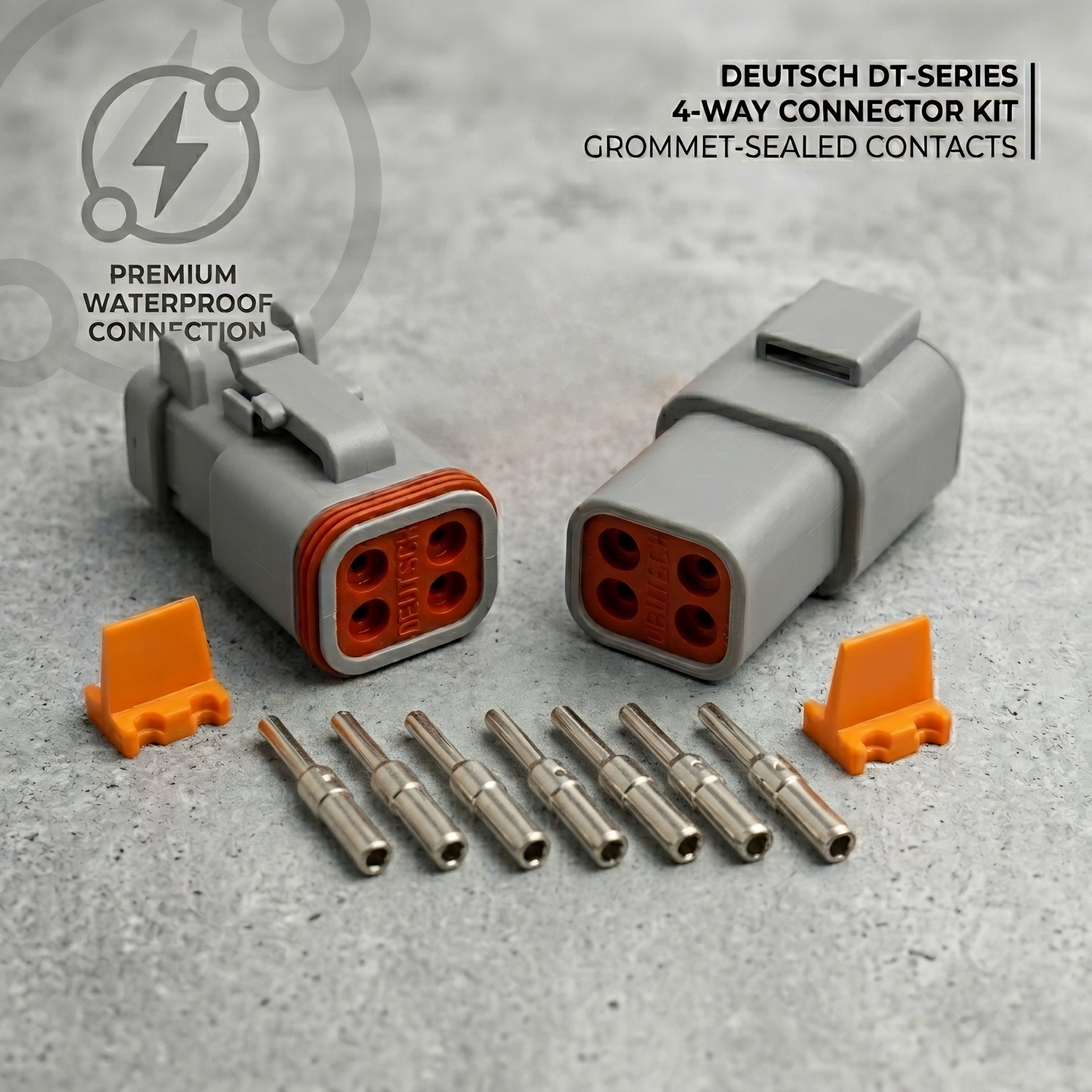

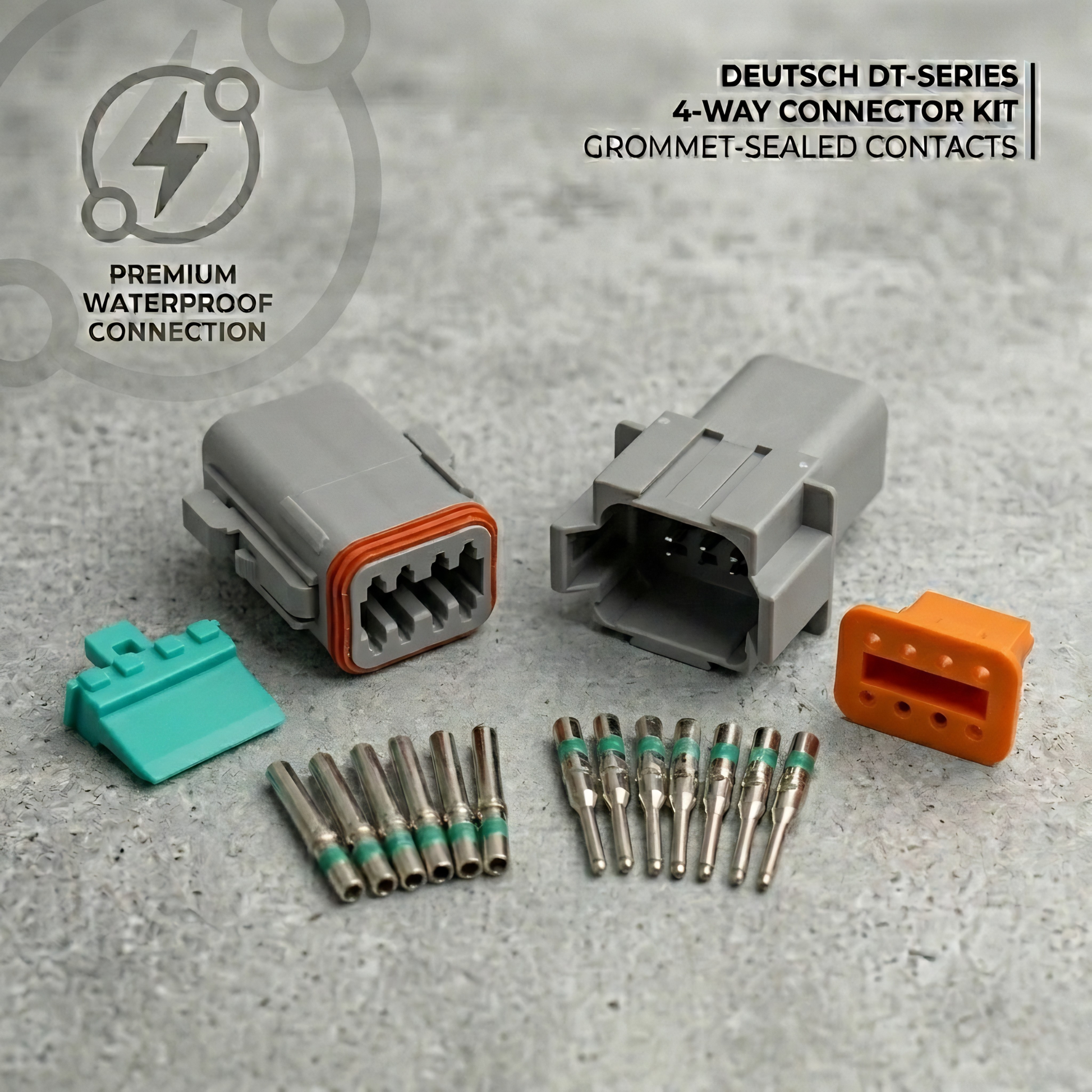

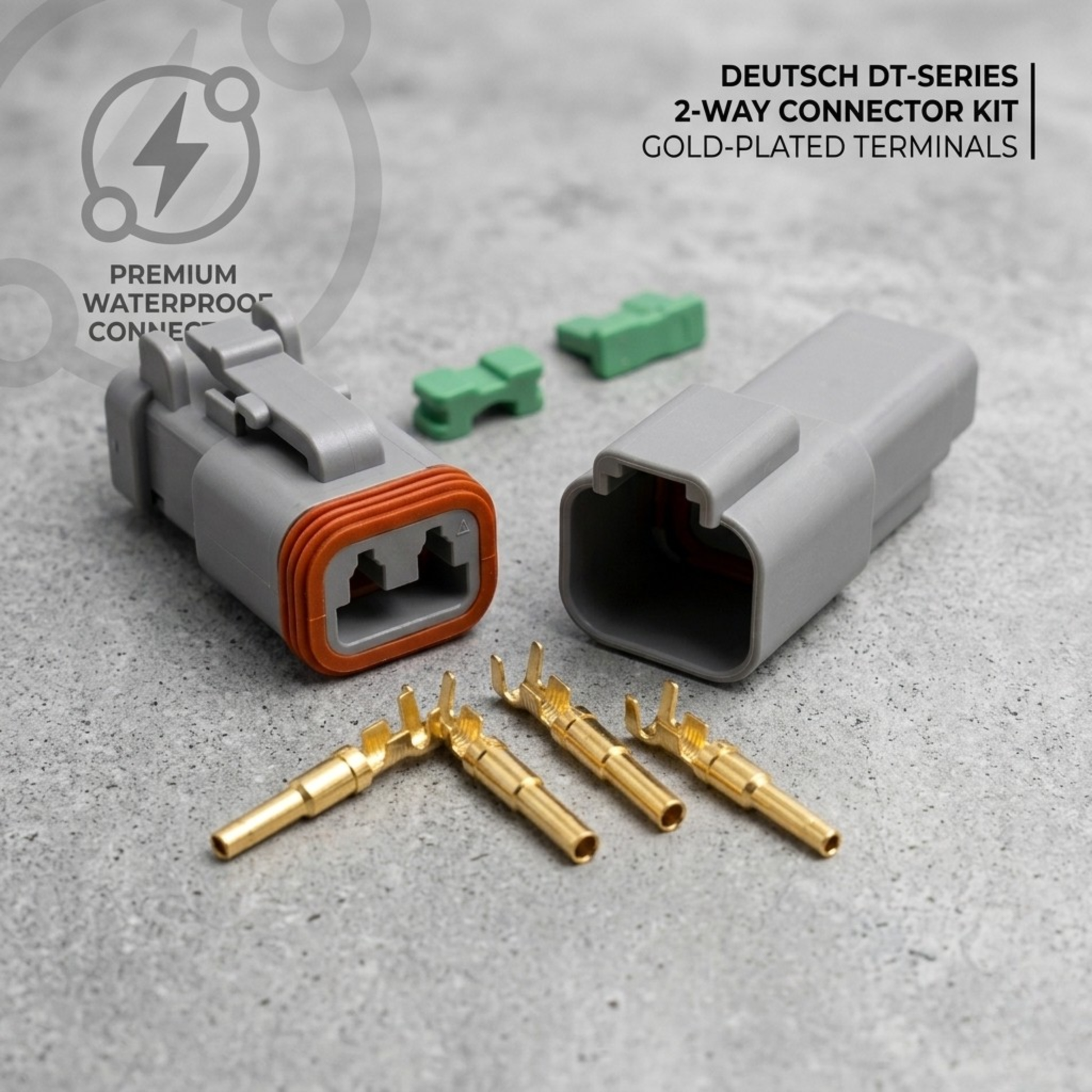

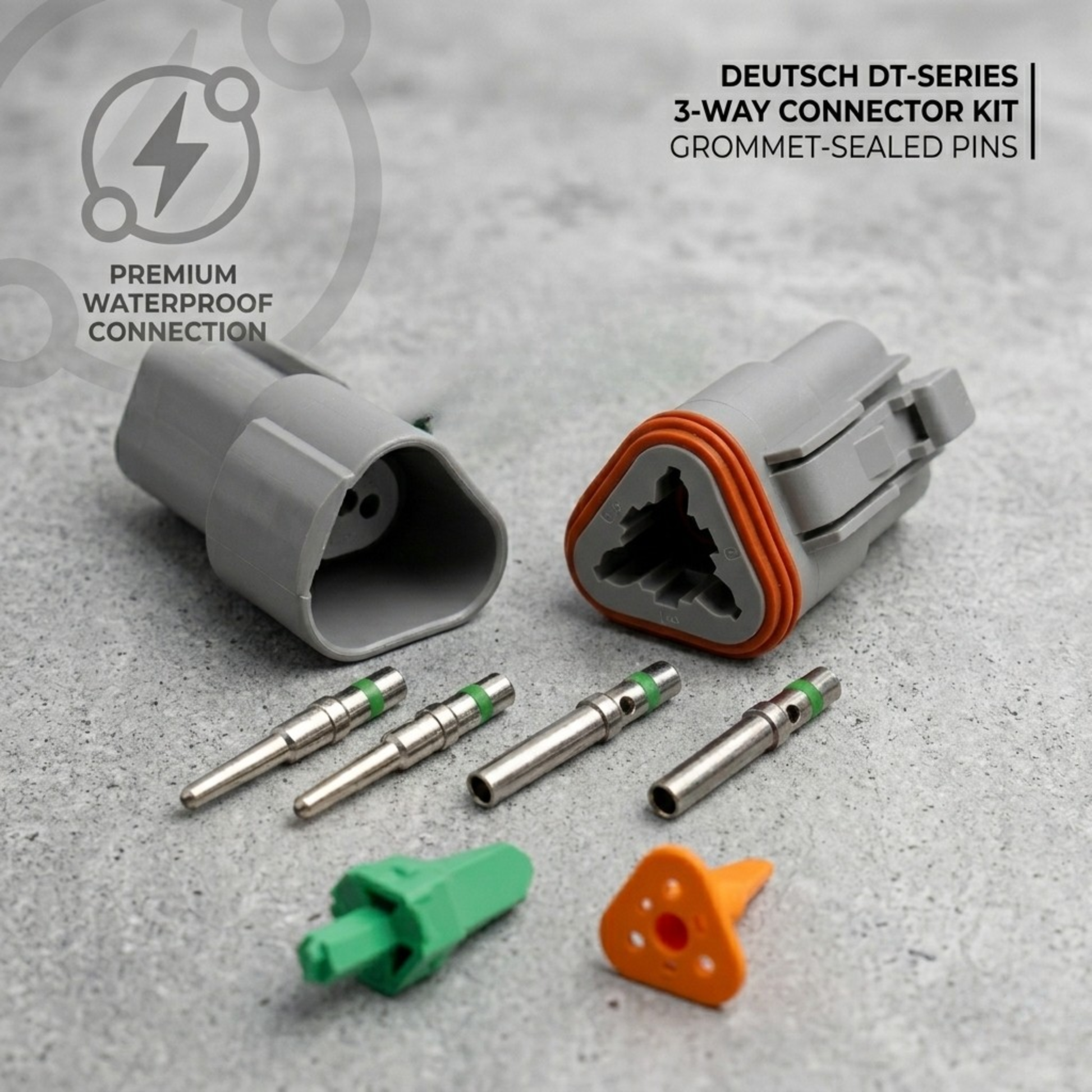

• Available in 2, 3, 4, 6, 8 and 12-pin configurations — select via variant

• Plug (male pin) and socket (female socket) versions — select via variant

• Correct quantity of Size 16 contacts included with every connector

• Secondary wedgelock included — confirms contact seating and compresses rear seal

• IP67 / IP68 rated — withstands submersion, pressure washing and dust ingress

• V0 flame-rated PA66 thermoplastic housing — UV-stabilised, fuel and solvent resistant

• Dual silicone seals — pre-installed nose seal and rear wire seals

• 13 A continuous per circuit — suitable for sensors, actuators, solenoids and lighting

• Wire gauge: 14–20 AWG (0.5–2.5 mm²)

• Operating temperature: −55 °C to +125 °C

• Minimum 100 mating cycles rated

• DT-compatible — fits existing DT-style harnesses, terminals and tooling

Technical Specifications

Specification Value

Series DT-Style (Deutsch DT compatible)

Pin Counts Available 2, 3, 4, 6, 8, 12

Types Plug (male pin) / Socket (female socket)

Contact Size Size 16

Current Rating 13 A continuous per circuit

Wire Gauge 14–20 AWG (0.5–2.5 mm²)

Housing Material PA66 thermoplastic (V0 flame rated, UV stabilised)

Seal Material Silicone (nose + rear wire seals)

Colour Grey

IP Rating IP67 / IP68

Operating Temp. −55 °C to +125 °C (−67 °F to +257 °F)

Dielectric Rating <2 mA @ 1500 VAC

Insulation >1000 MΩ

Applications

• Automotive OEM and aftermarket wiring harnesses

• Trucks, buses, coaches and heavy commercial vehicles

• Agricultural machinery — tractors, harvesters, sprayers

• Construction and mining plant — excavators, loaders, dozers

• Marine and recreational — bilge pumps, navigation, outboards

• 4WD and off-road builds — light bars, winches, lift kits

• Motorsport wiring — race harnesses, data loggers, ECU looms

• Emergency vehicles — emergency lighting, communications systems

• Industrial equipment — conveyors, HVAC, pumping stations
